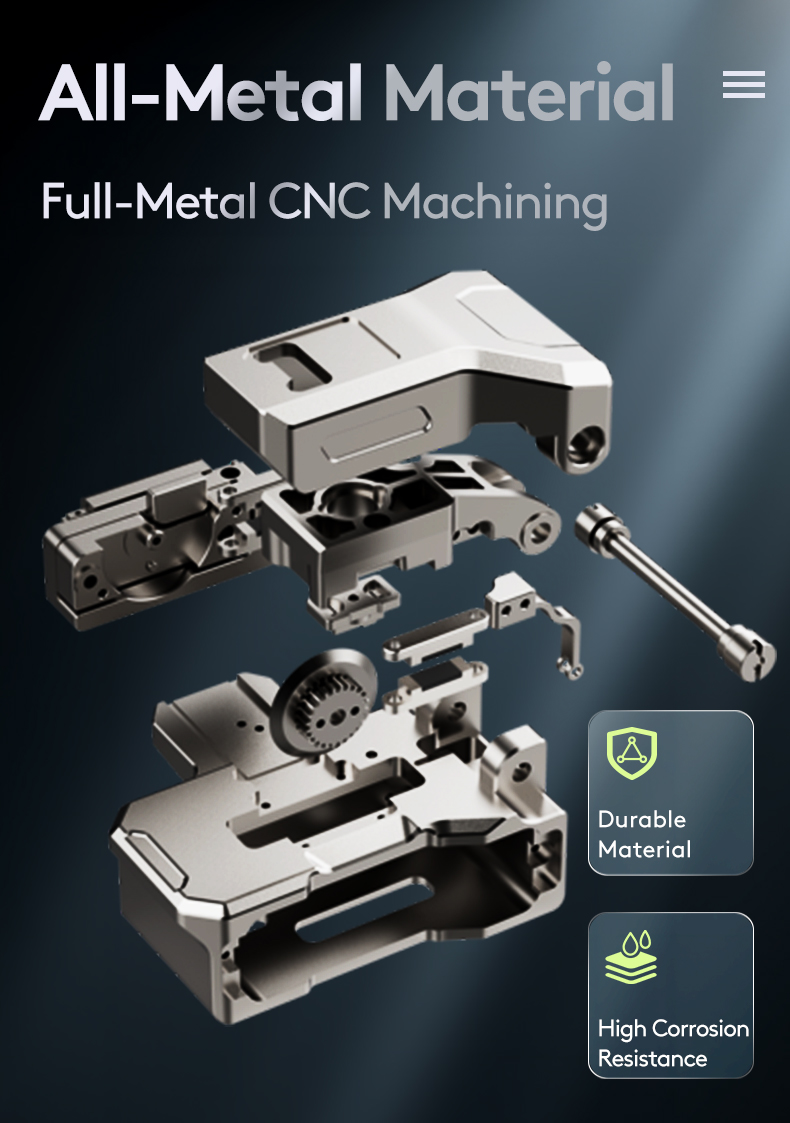

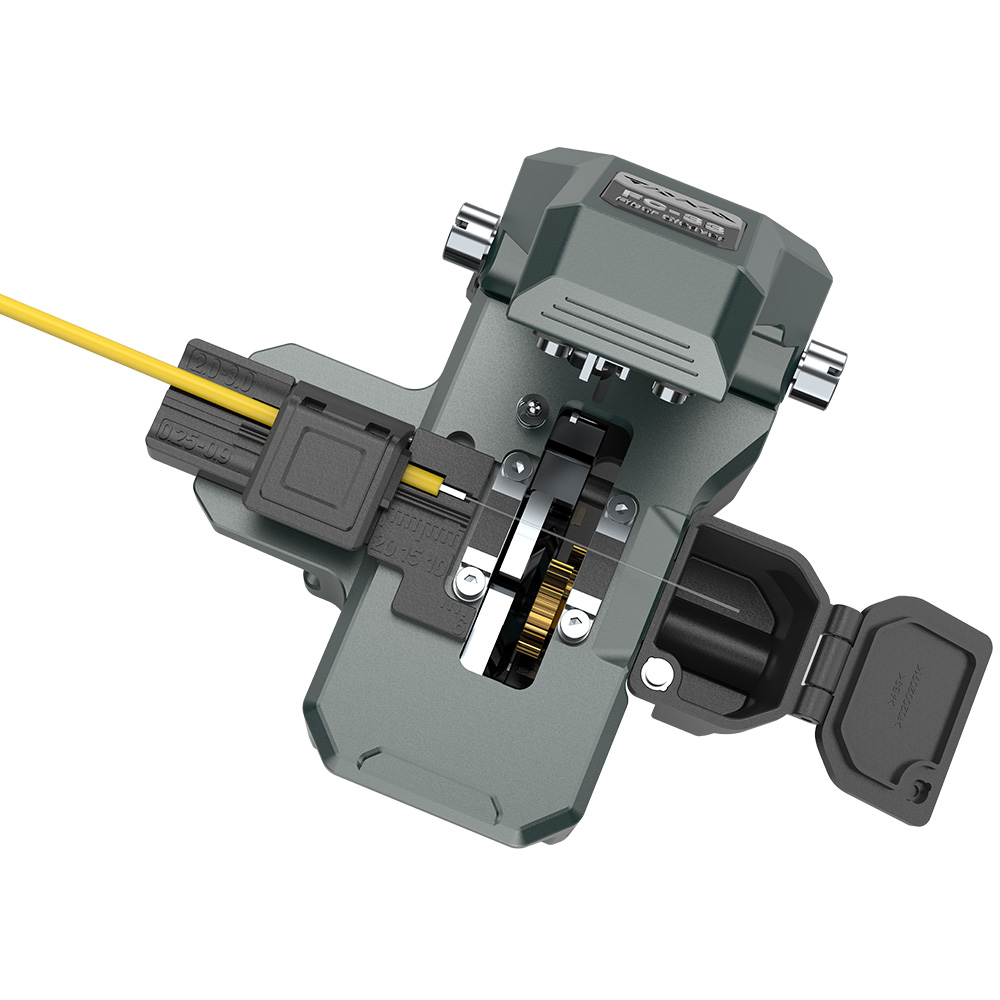

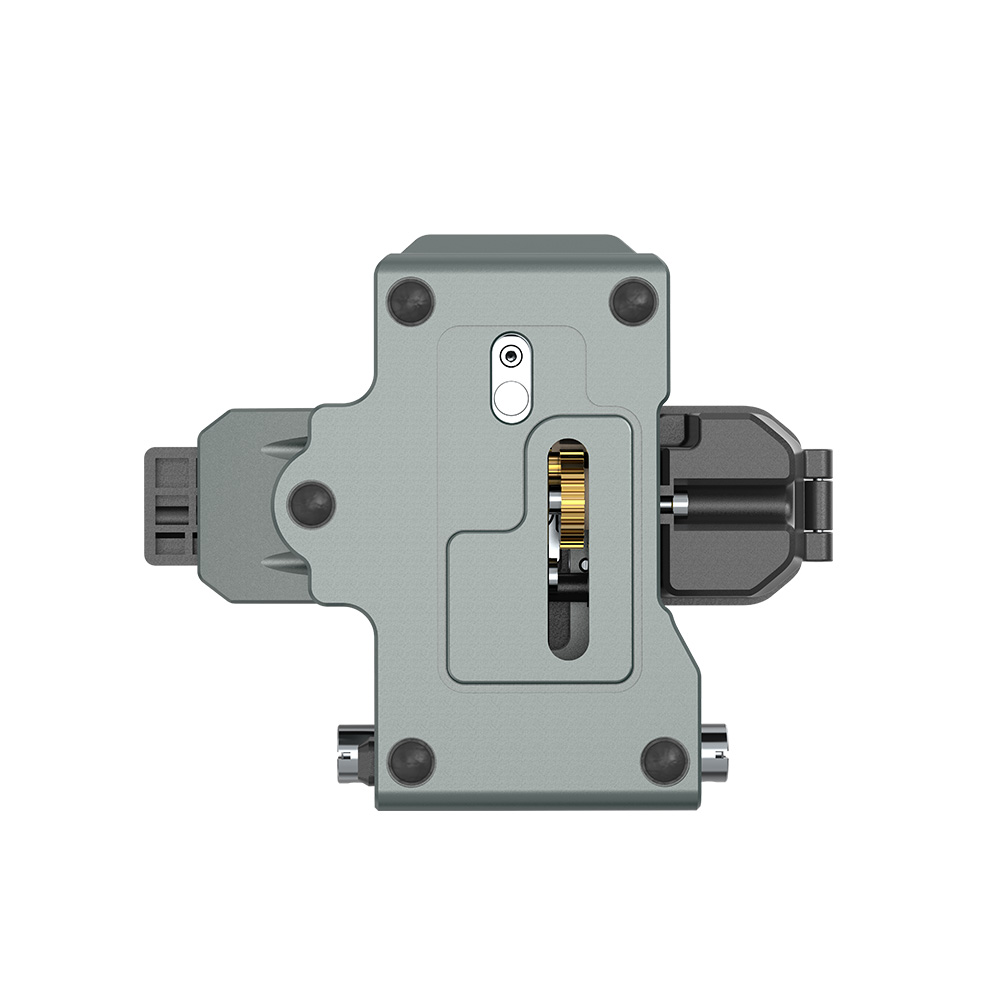

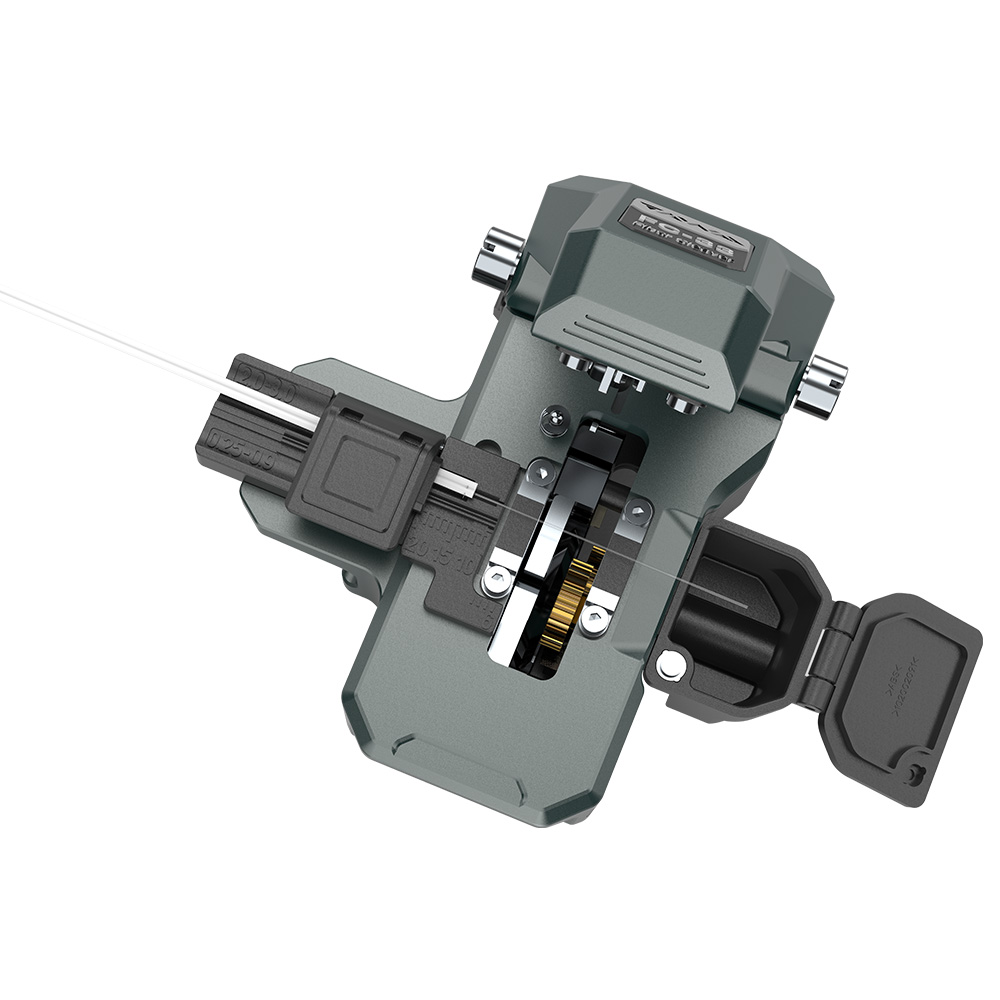

All-Metal Material

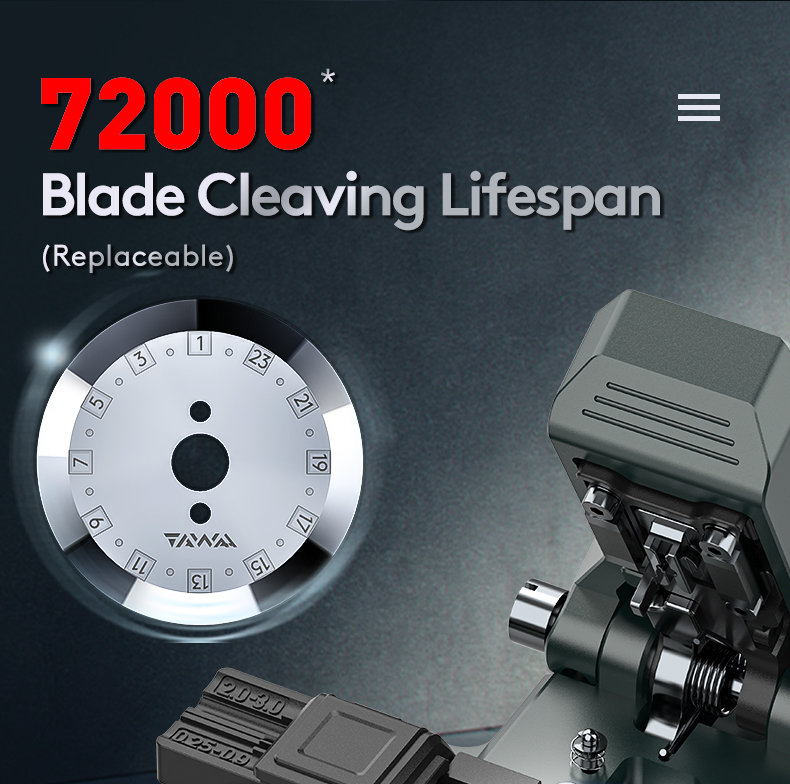

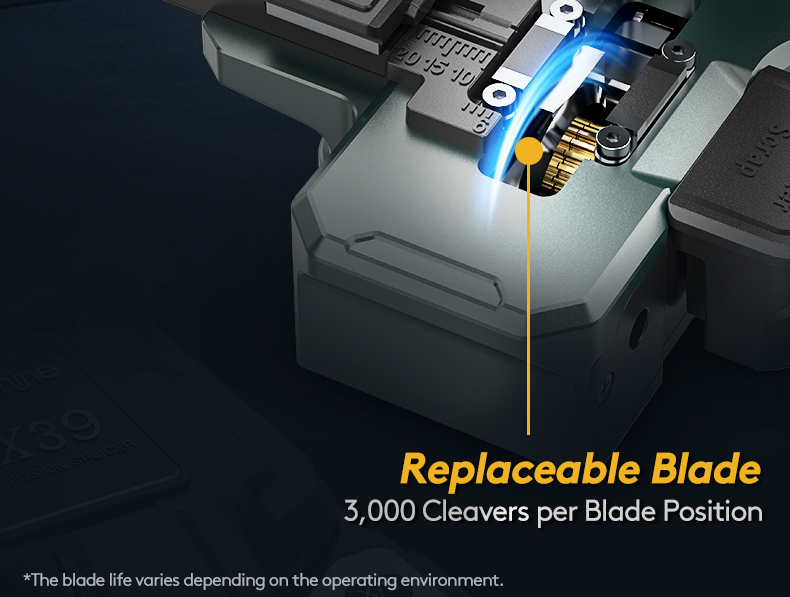

Blade Cleaving Lifespan: 72,000 (Replaceable)

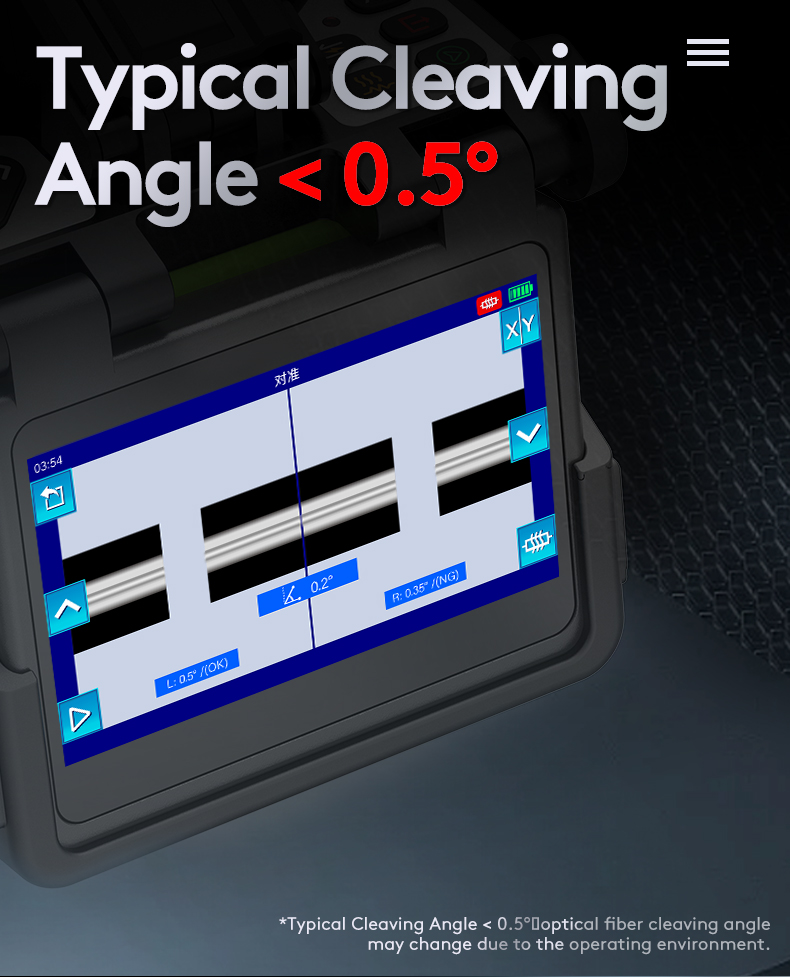

Typical Cleaving Angle <0.5°

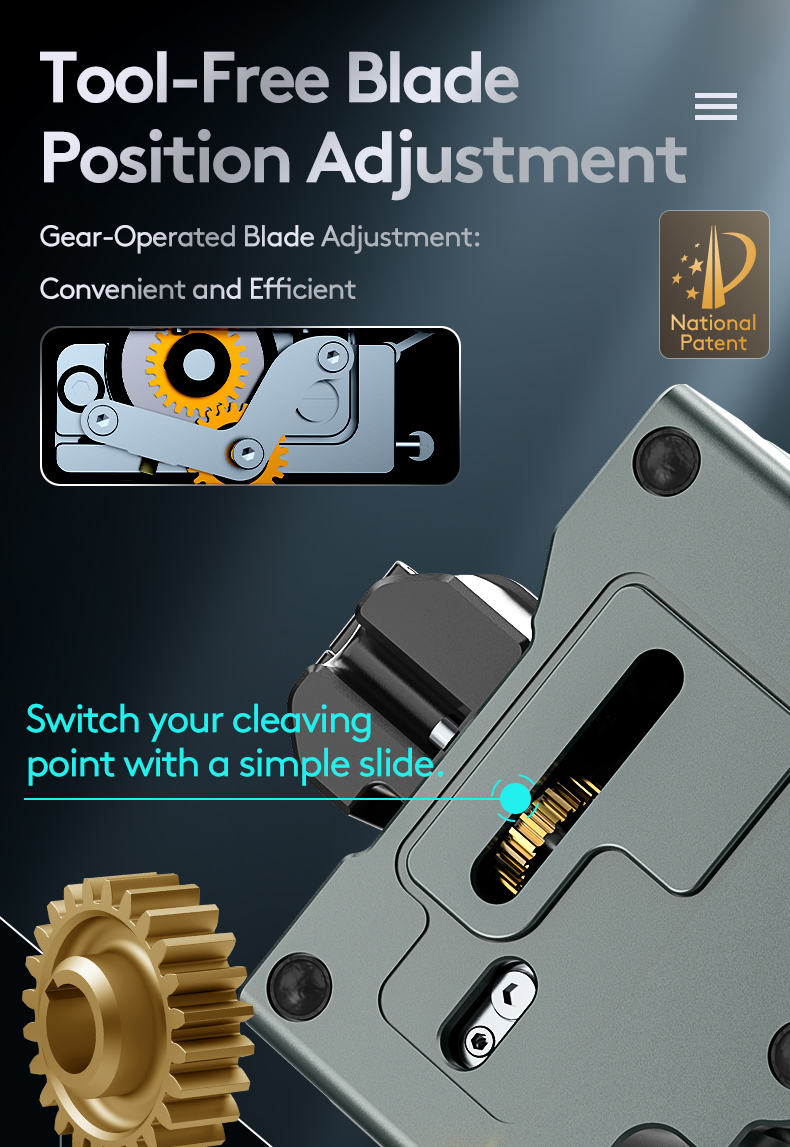

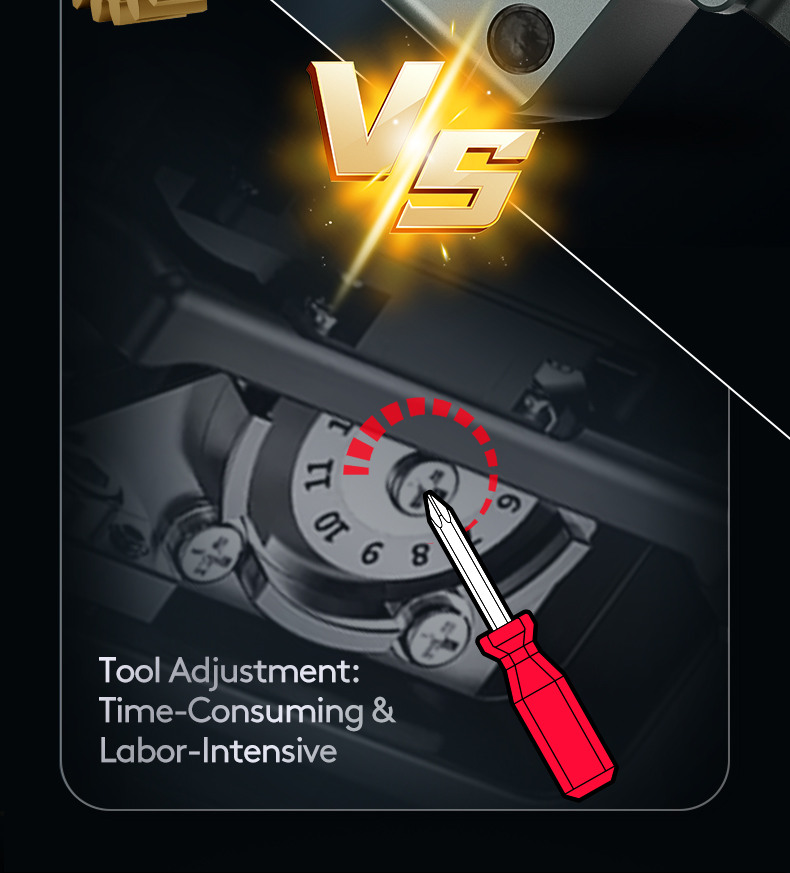

Tool-Free Blade Position Adjustment

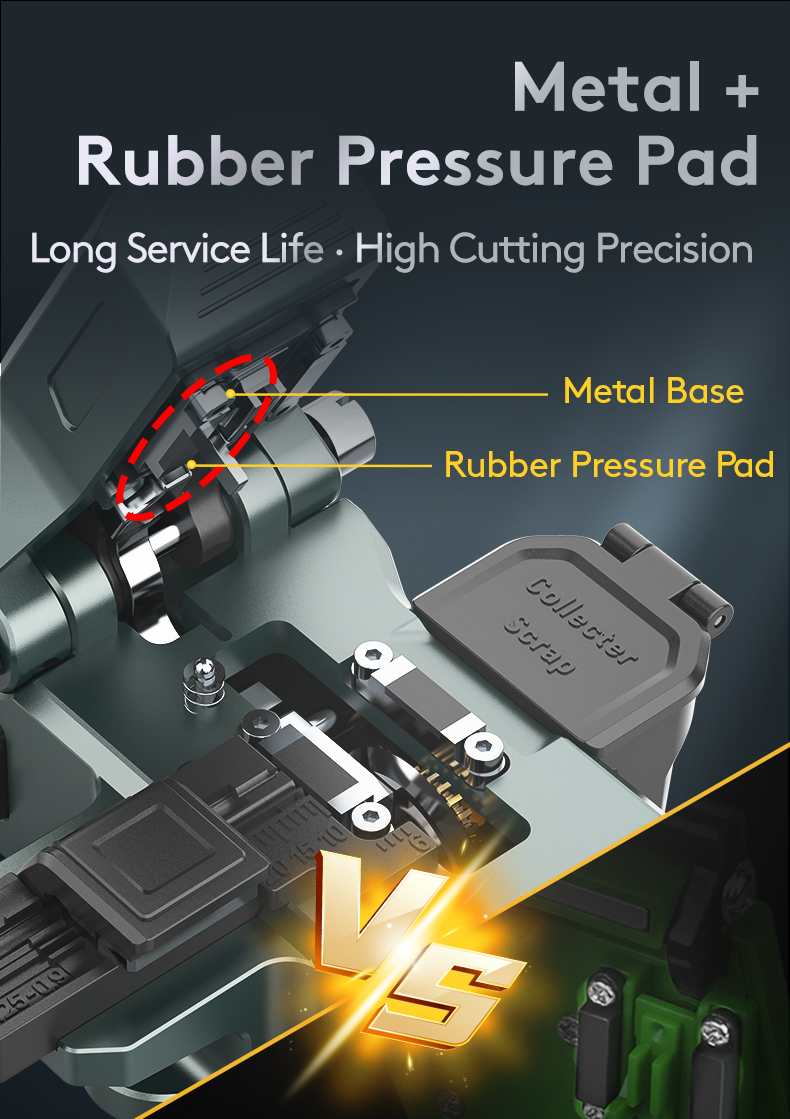

Metal + Rubber Pressure Pad

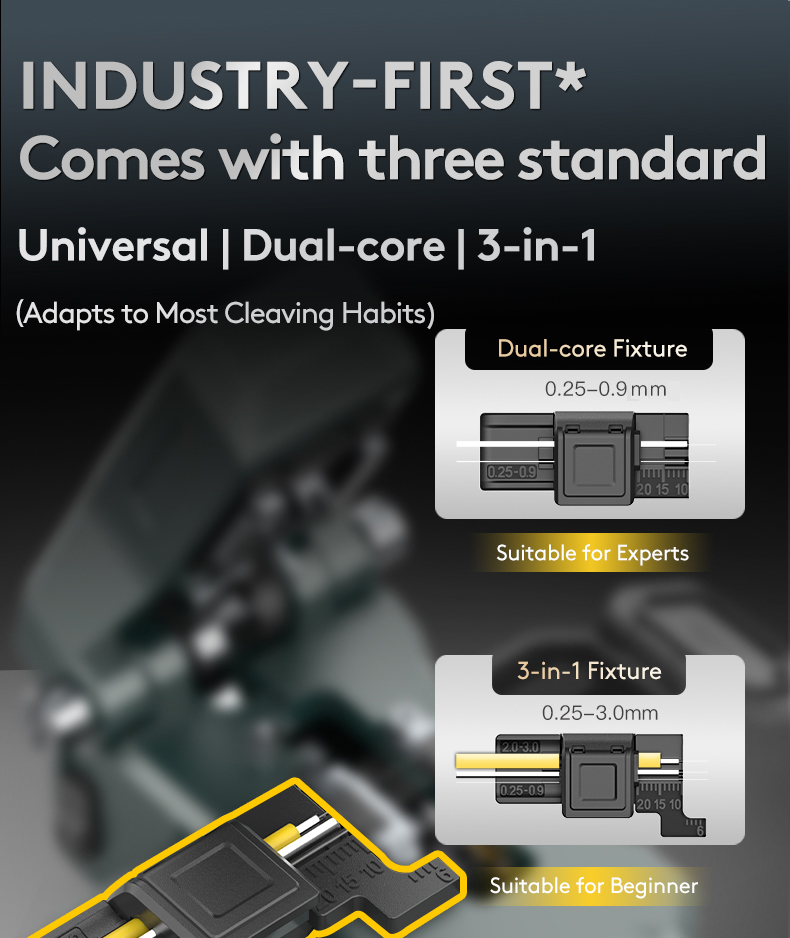

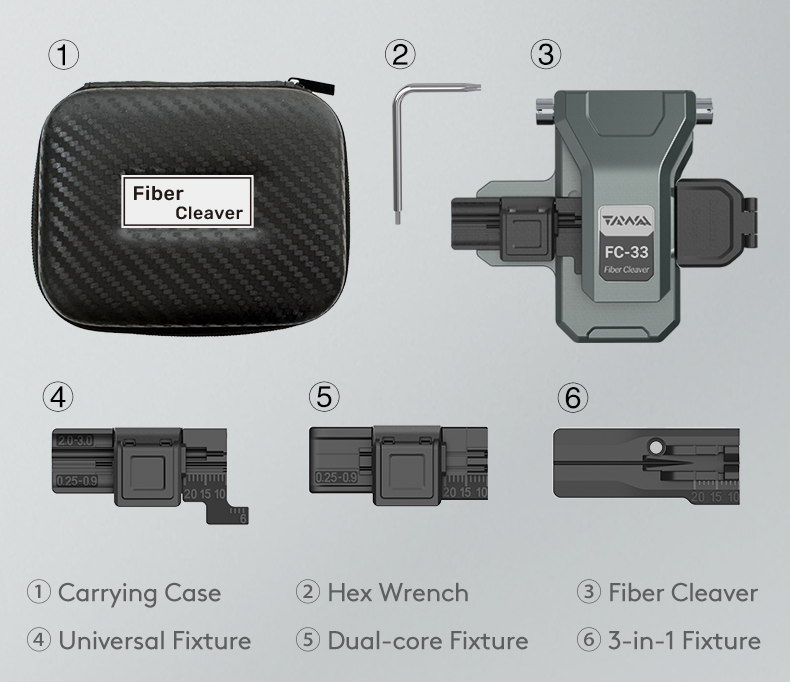

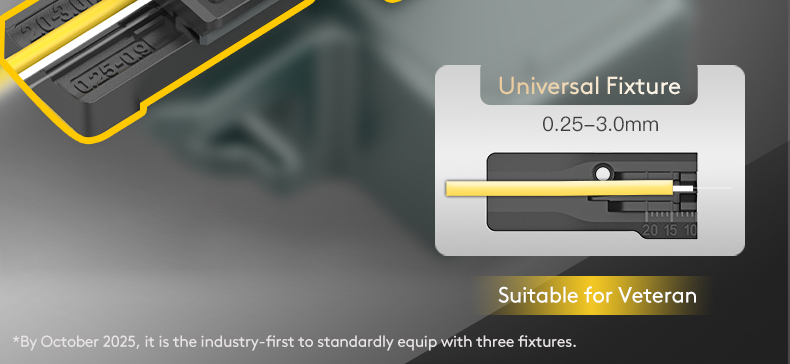

Comes with three standard fixtures (Universal / Dual-core / 3-in-1)
Enjoy lifetime free service

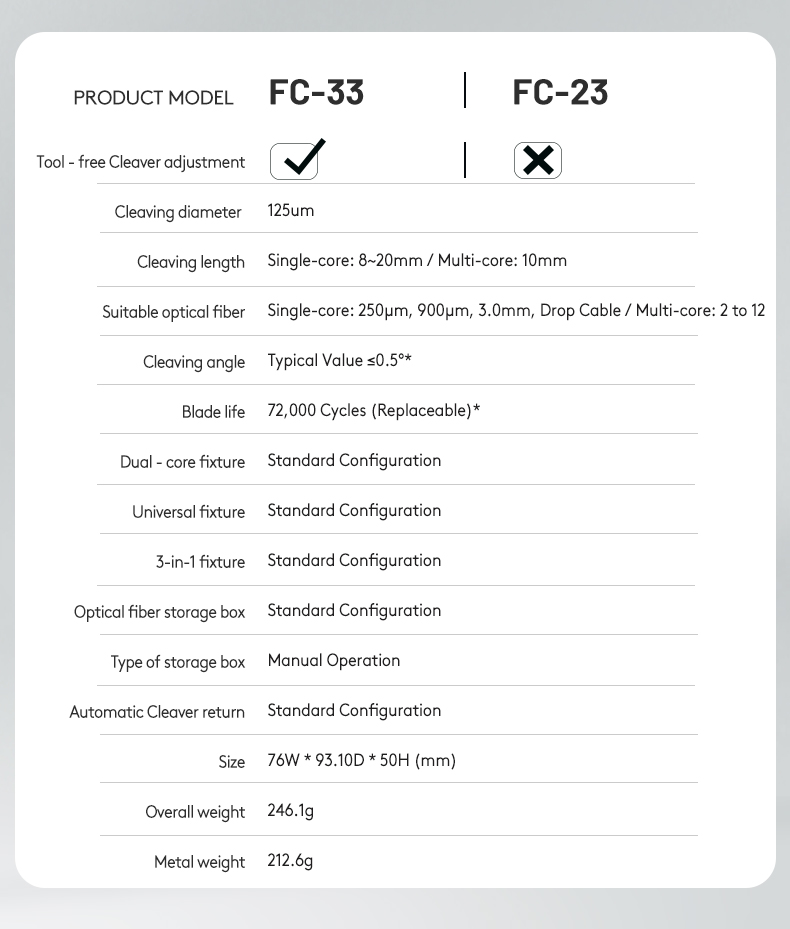

| Product Model | FC-33F | FC-23F |
| Tool-free cleaver adjustment | ✔ | ✘ |
| Cleaving diameter | 125um | |
| Cleaving length | Single-core: 8~20mm / Multi-core: 10mm | |
| Suitable optical fiber | Single-core: 250μm, 900μm, 3.0mm, drop cable / Multi-core: 2 to 12 core | |

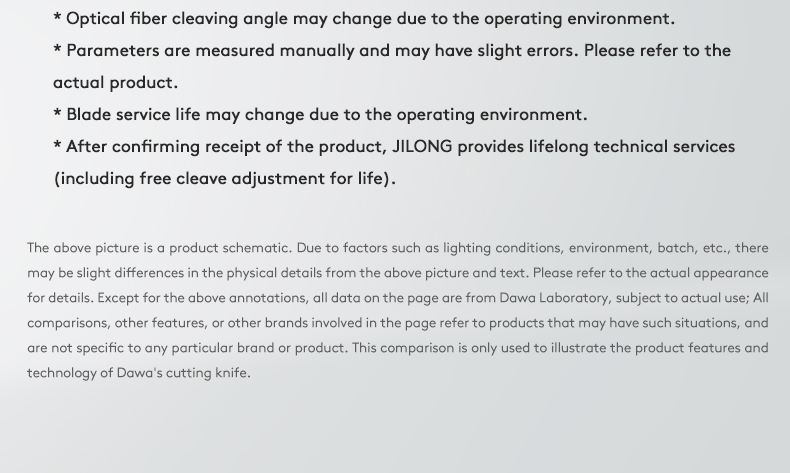

| Cleaving angle | Typical value ≤0.5°* | |
| Blade life | 72,000 cycles (replaceable)* | |
| Dual-core fixture | Standard configuration | |
| Universal fixture | Standard configuration | |
| 3-in-1 fixture | Standard configuration | |
| Optical fiber storage box | Standard configuration | |
| Type of storage box | Manual operation | |
| Automatic cleaver return | Standard configuration | |

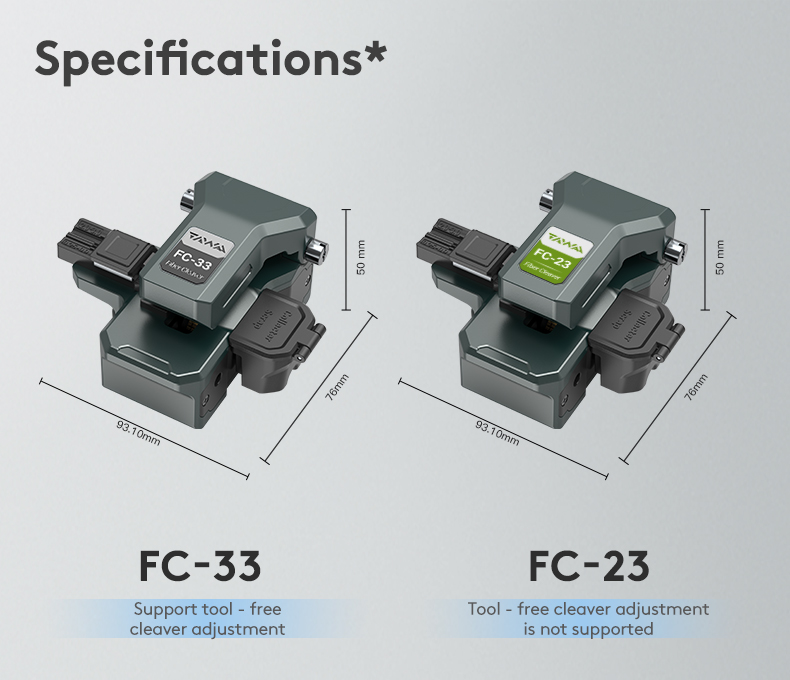

| Size | 76W * 93.10D * 50H (mm） | |
| Overall weight | 246.1g | |
| Metal weight | 212.6g | |
