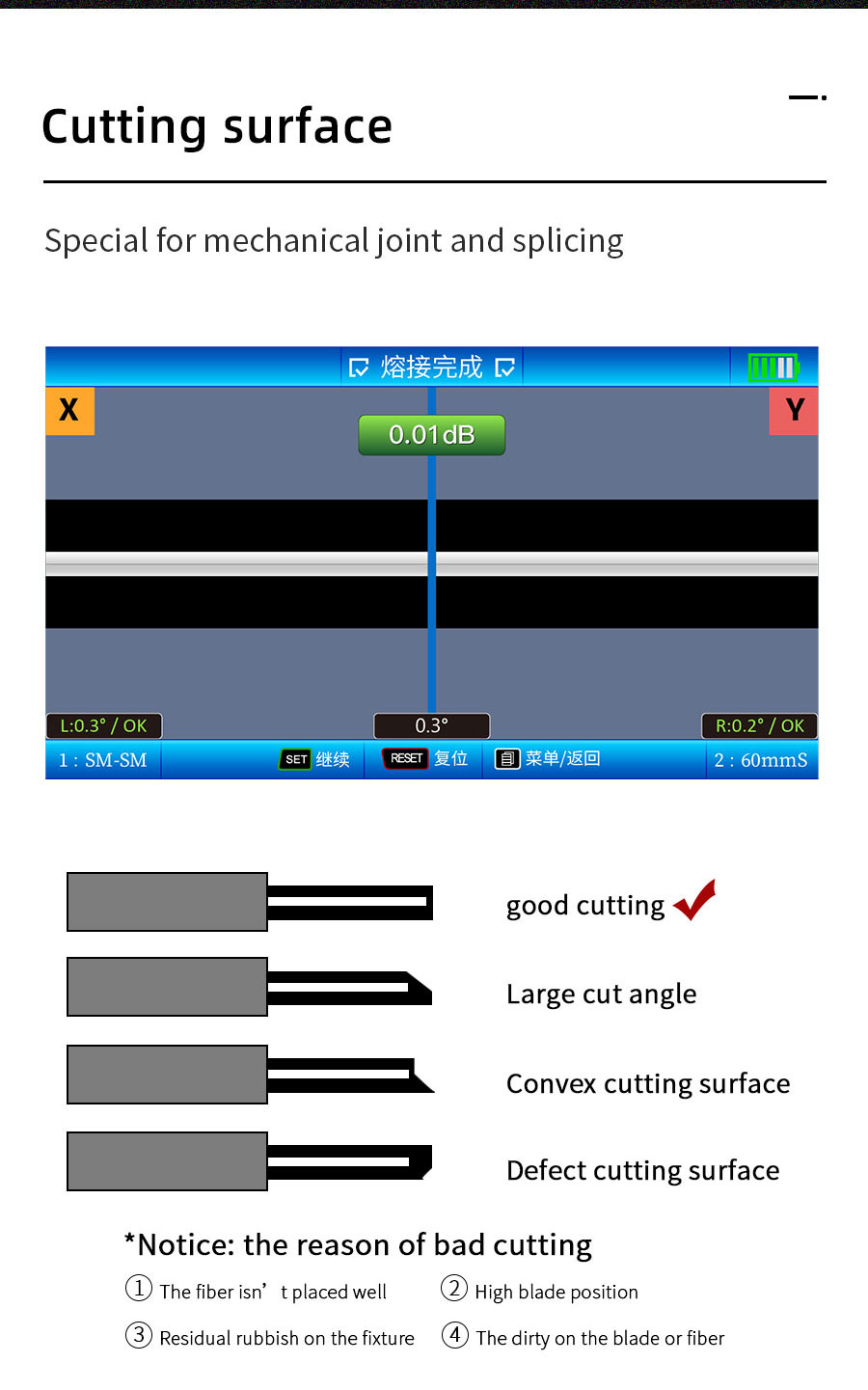

Cleaved Angel <0.5 degress

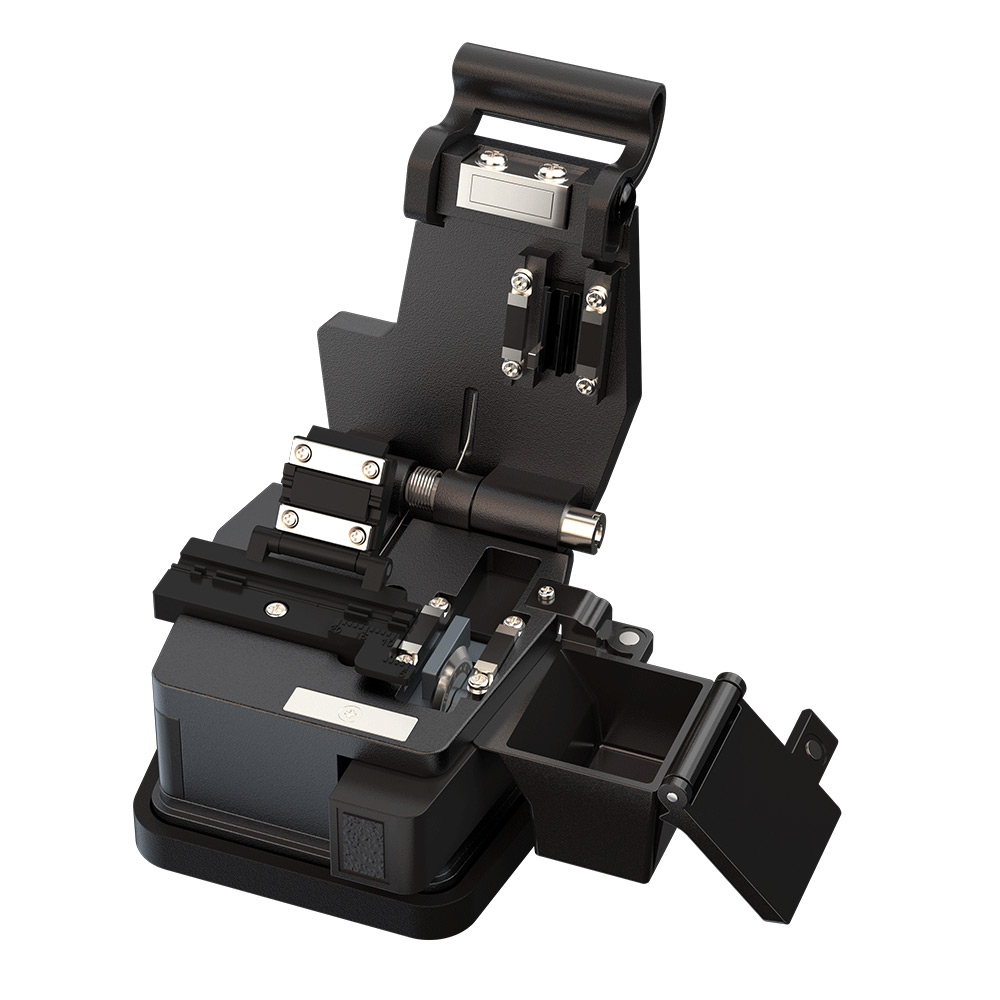

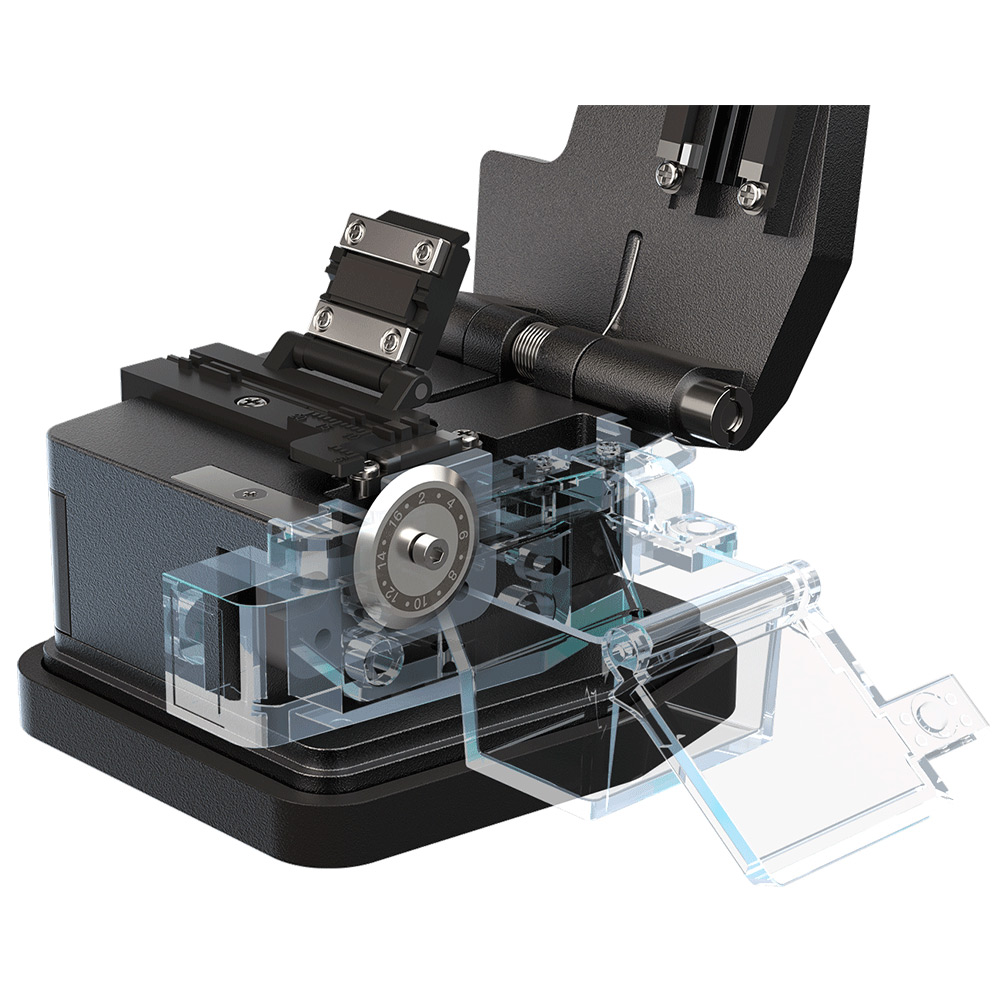

Large capacity waste fiber bin
48000 cleaves

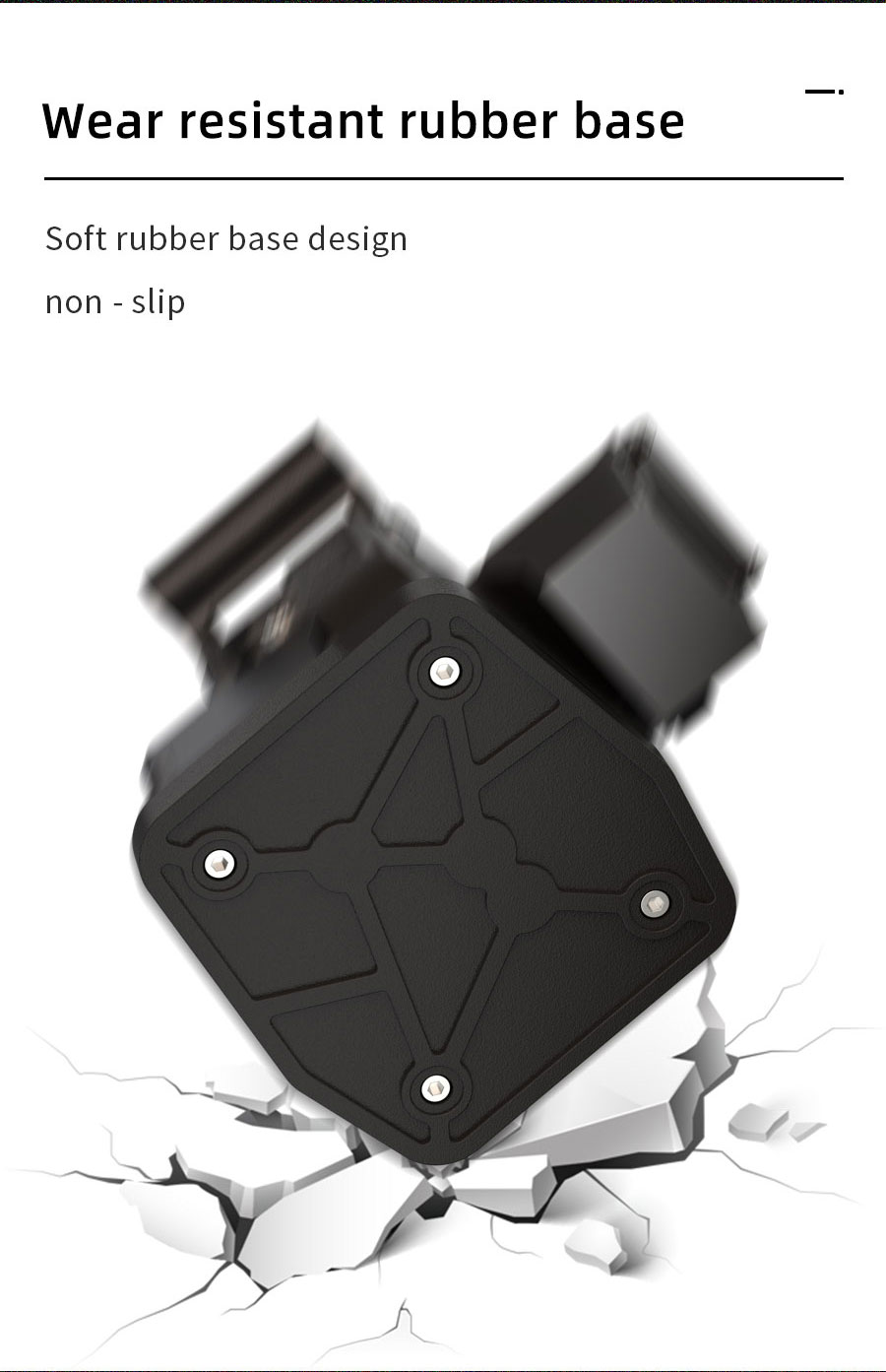

Fall proof, dustproof and waterproof

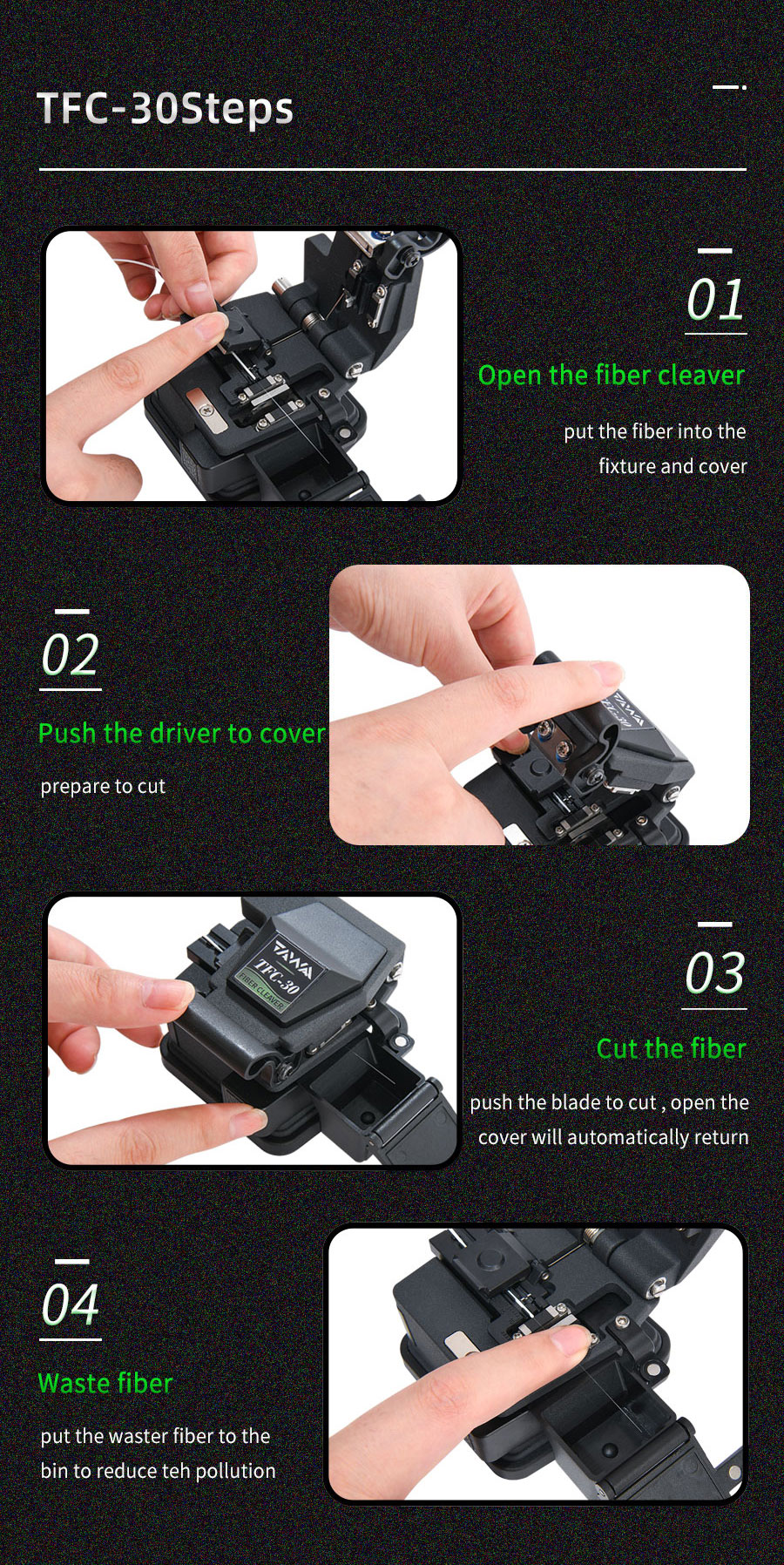

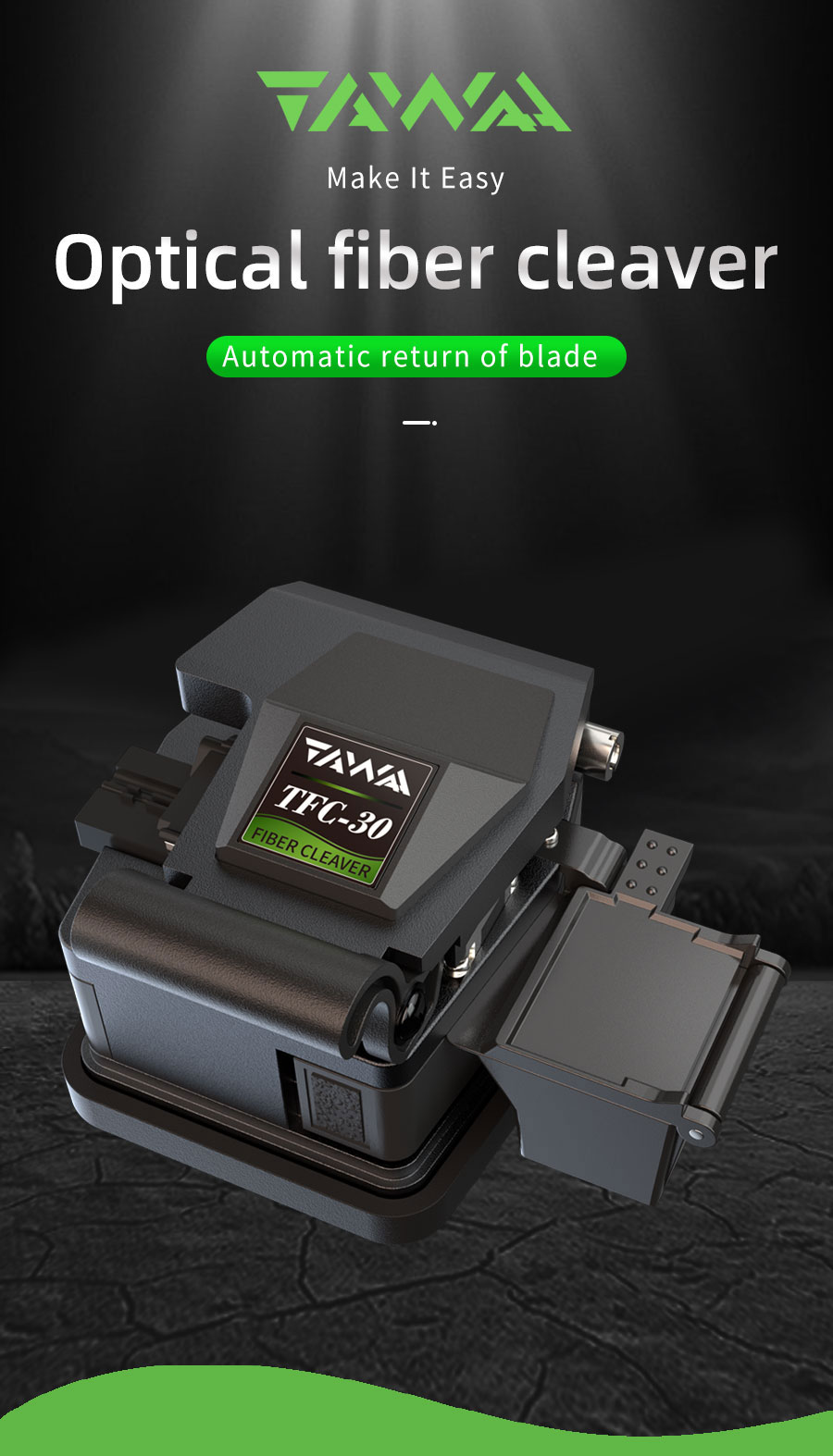

Automatic return of blade

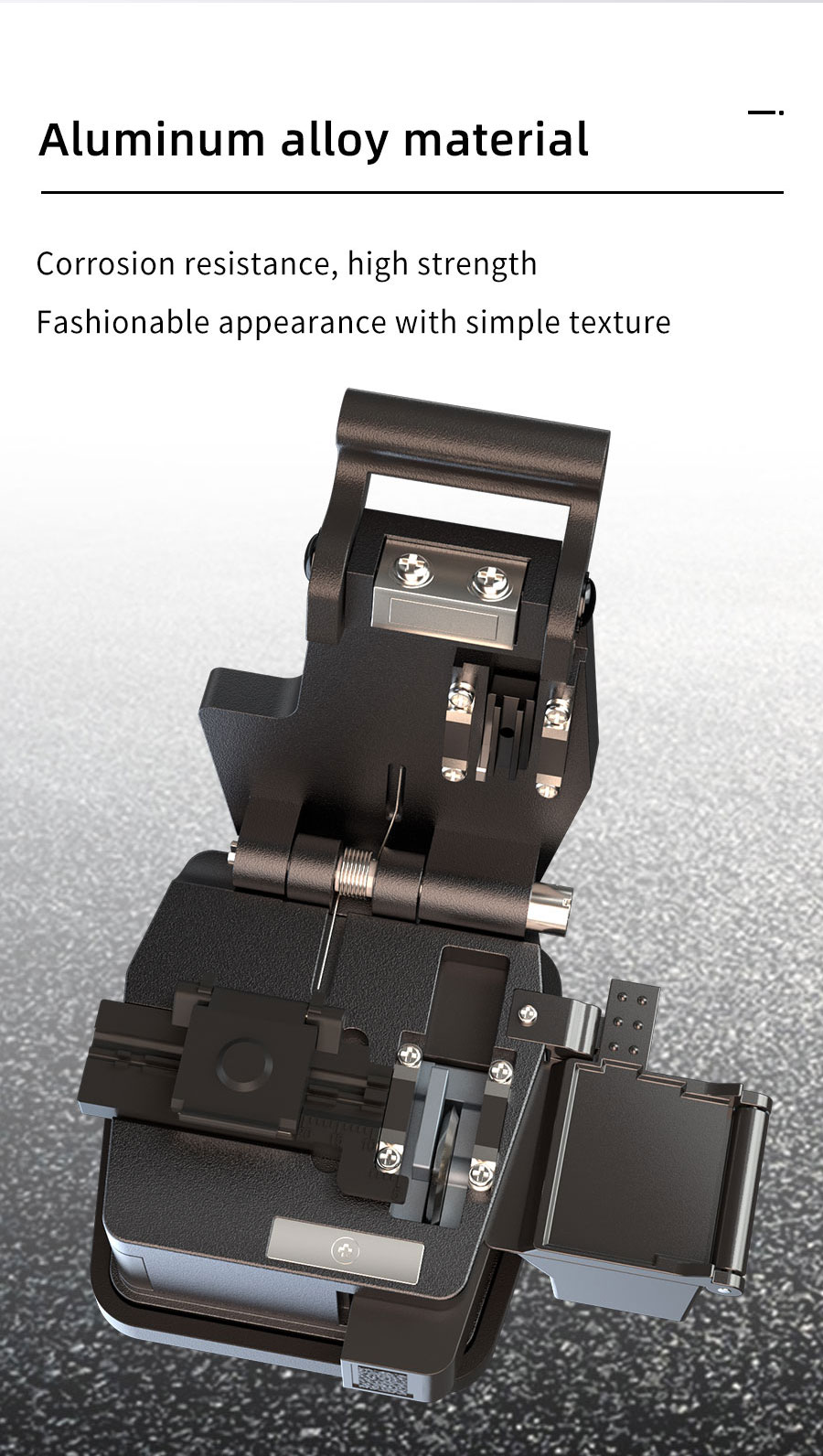

Aluminum alloy material

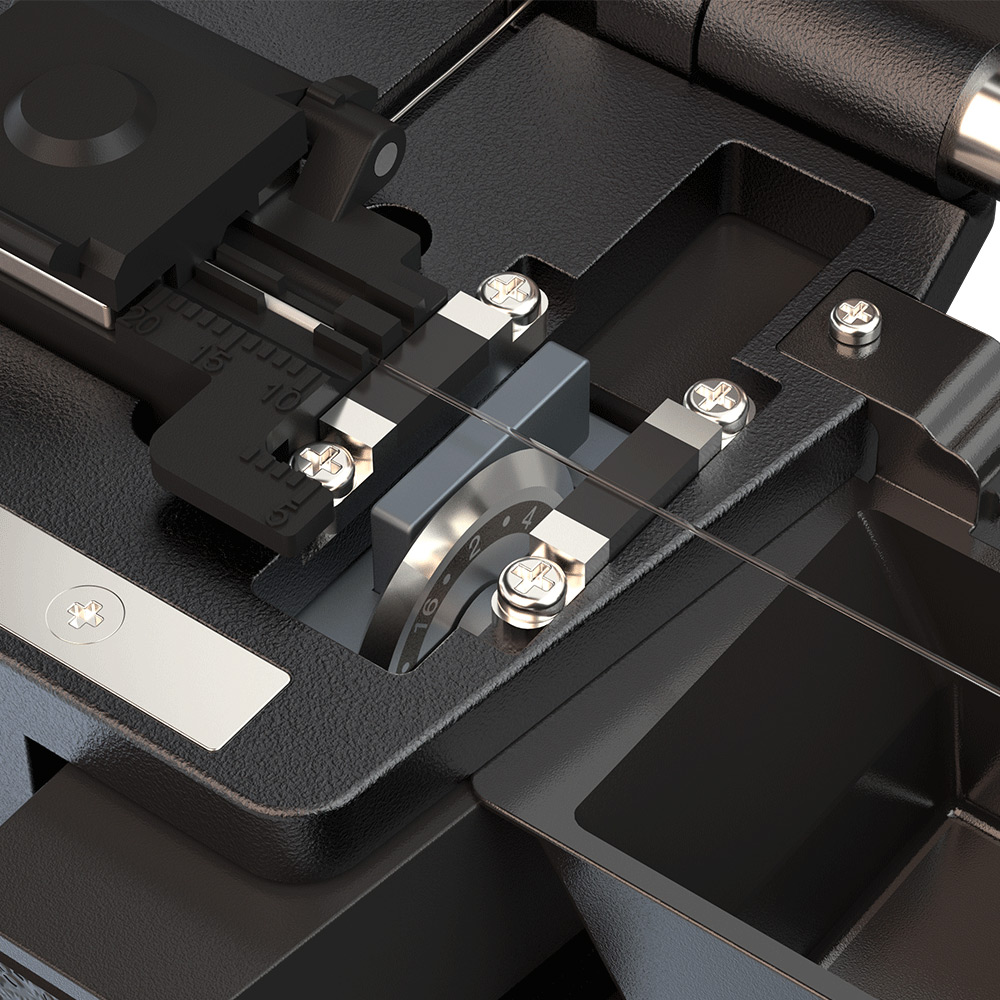

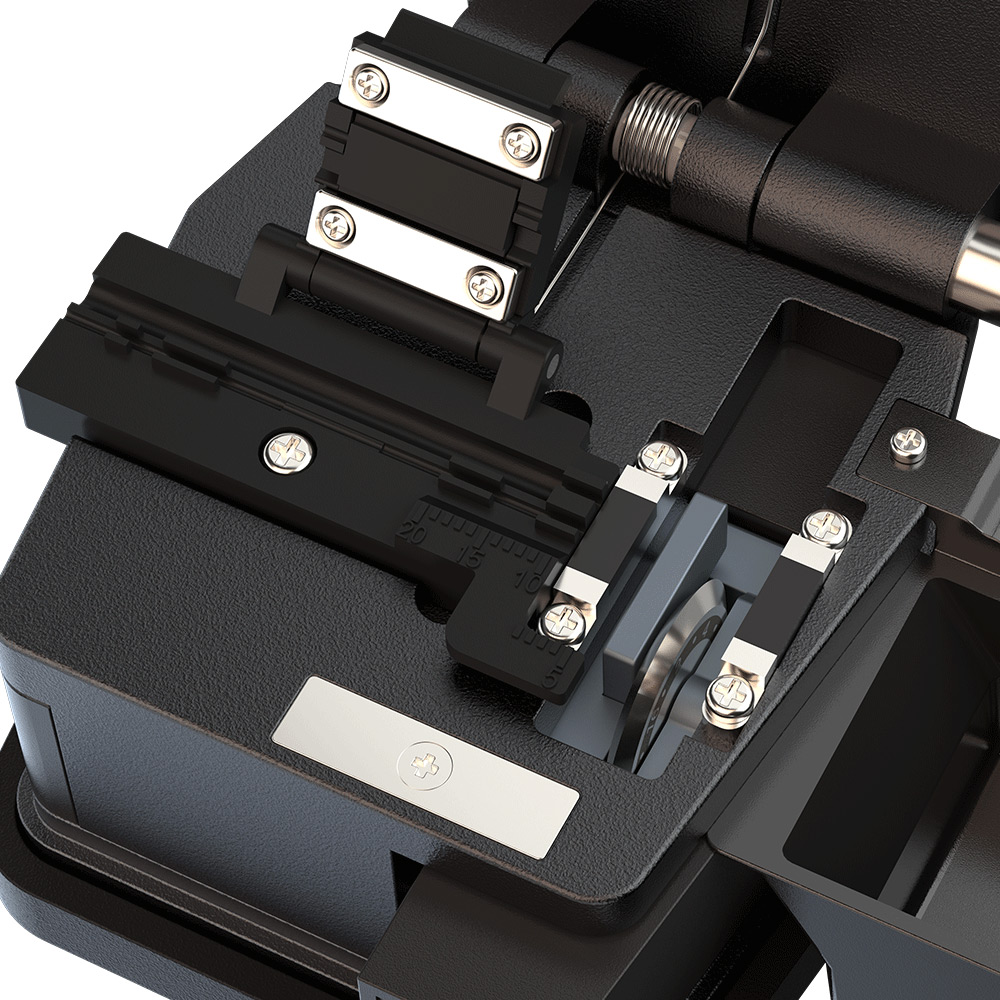

Replaceable blade and fixture

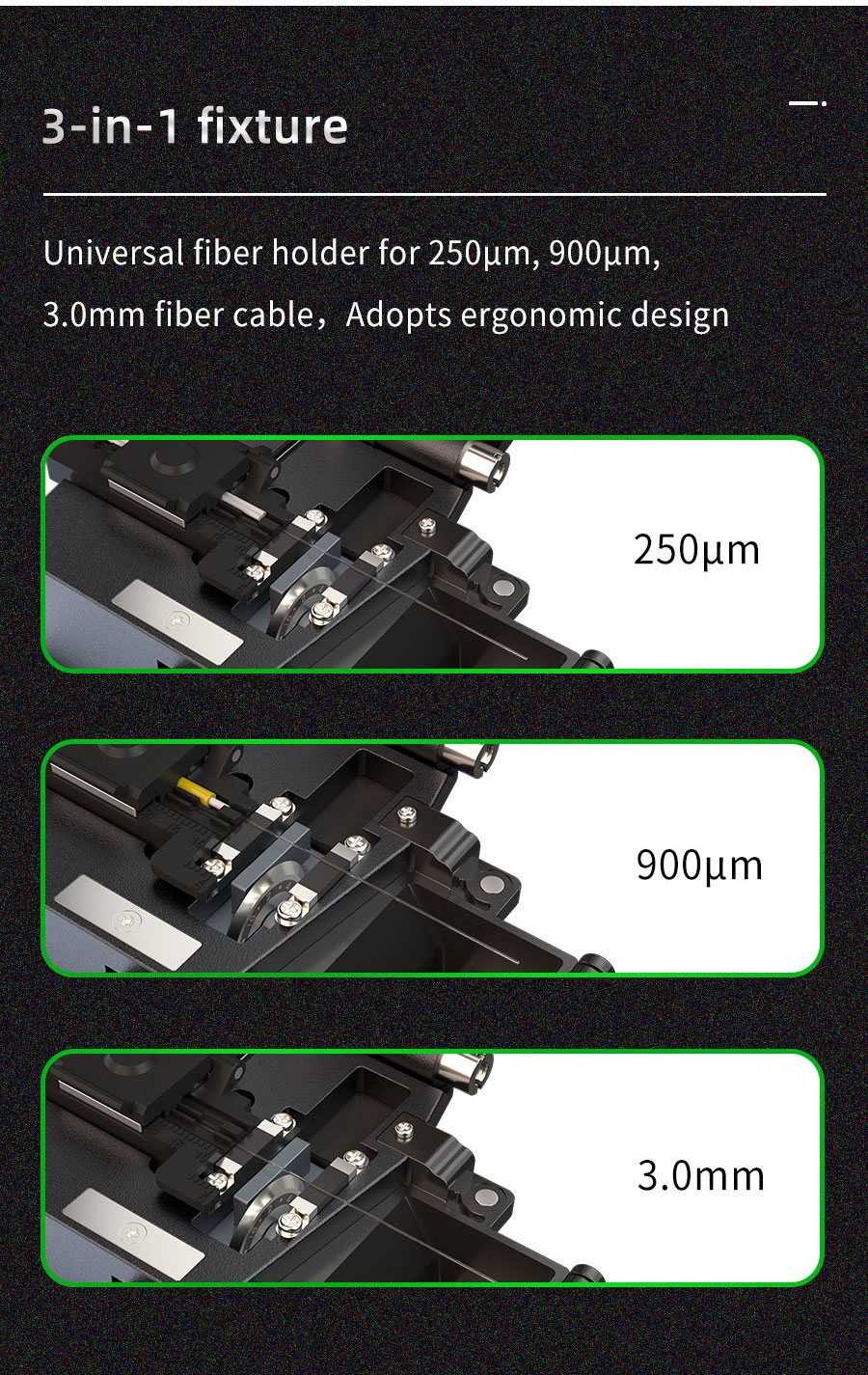

3-in-1 holder, 0.25-3.0mm f iber

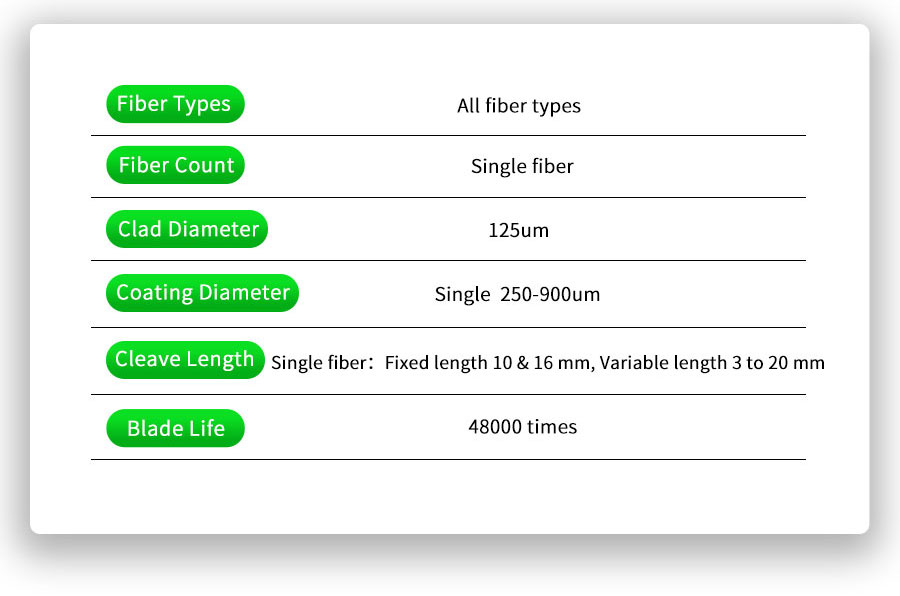

| Fiber Types | single fiber |
| Coating Diameter | φ0.25&0.9 |
| Clad Diameter | 125μm |
| Cleaved Angel | ≤0.5° |
| Cleave Length | 9-16mm(φ0.25) 10-16mm(φ0.9) |

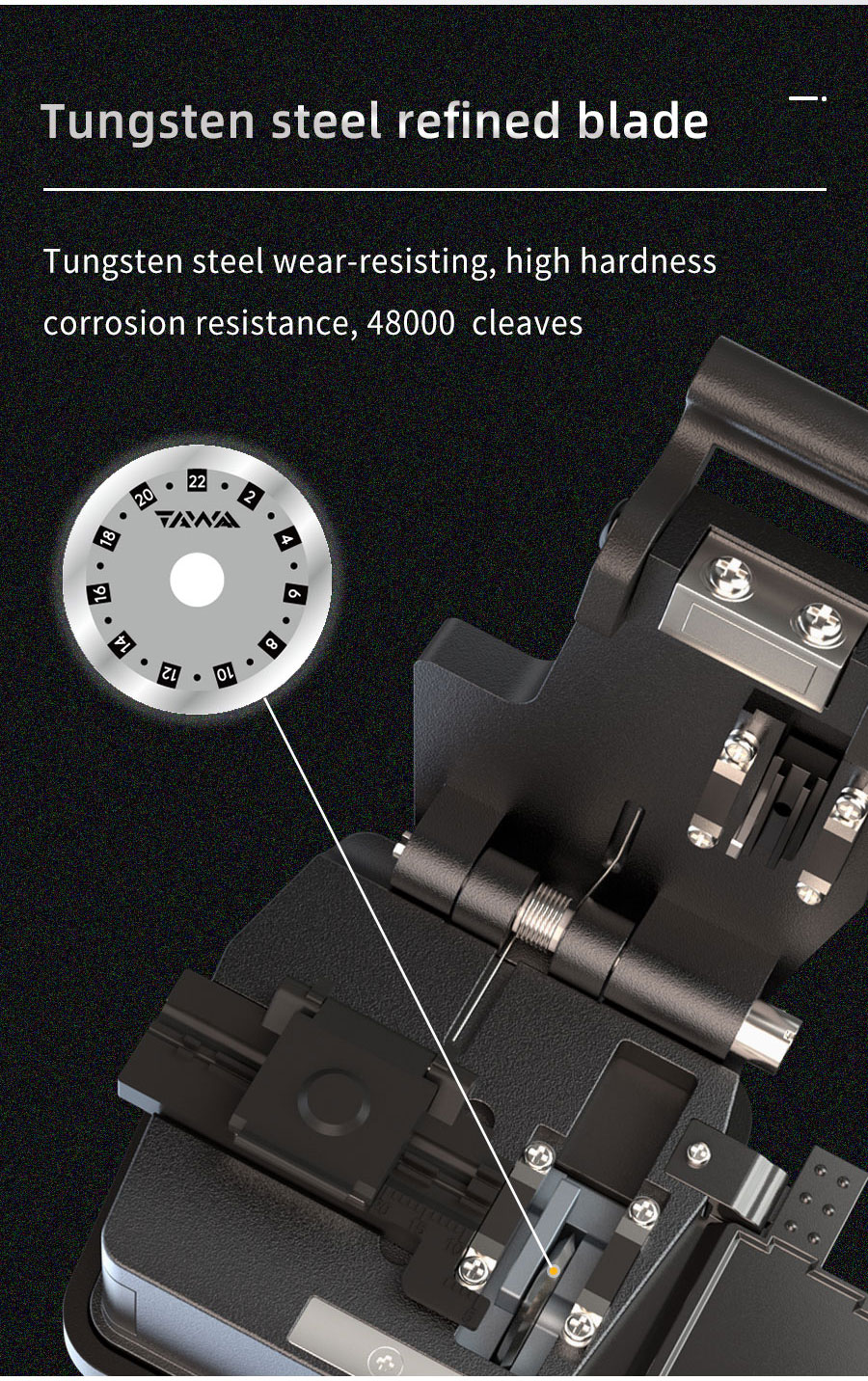

| Blade Life | 48000 fibers (3000 cutting x 16 points) |

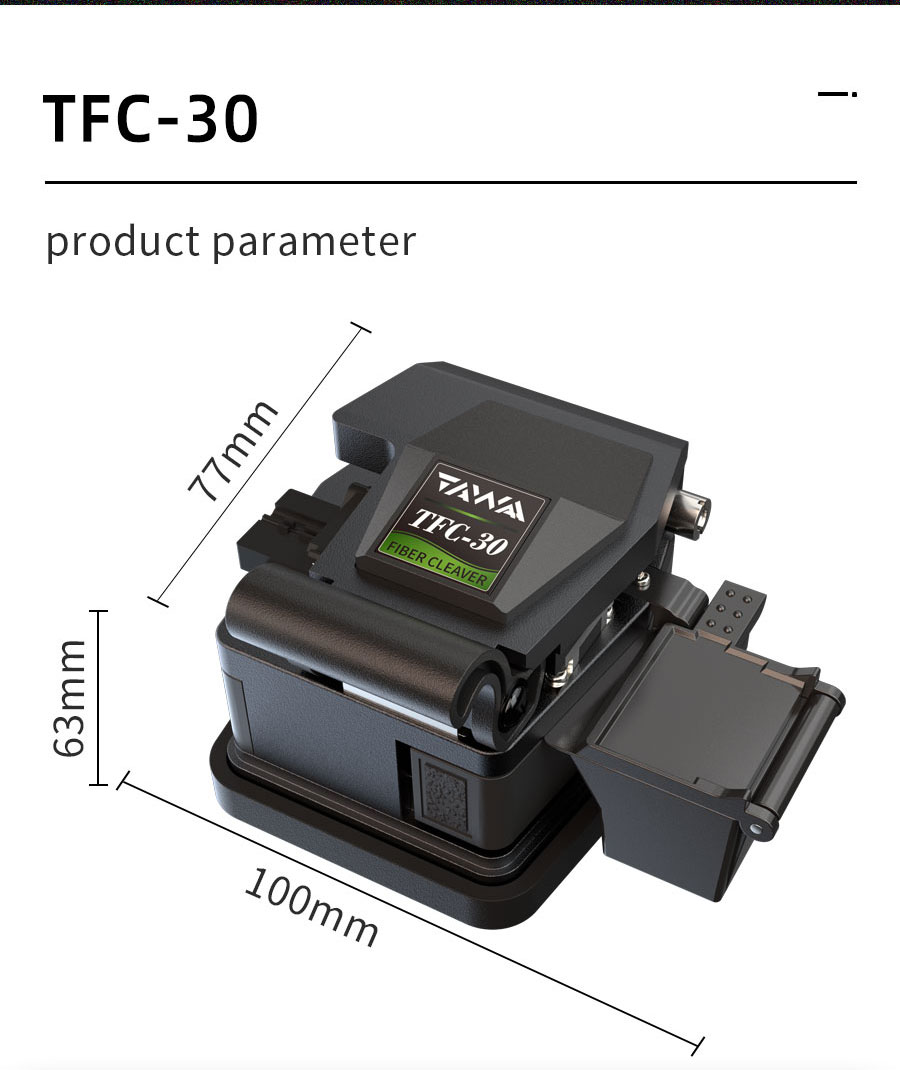

| Dimensions | 62Wx64Dx74H mm |
| Weight | 350g |
| Item | P/N | Quantity |
| TFC-30 main body/blade | TFC-30-01 | 1 |
| Universal Fiber Holder | TFC-30-91 | 1 |
| Large Capacity Fiber Waste Bin | TFC-30-11 | 1 |
| Hexagonal Wrench | TFC-30-12 | 1 |

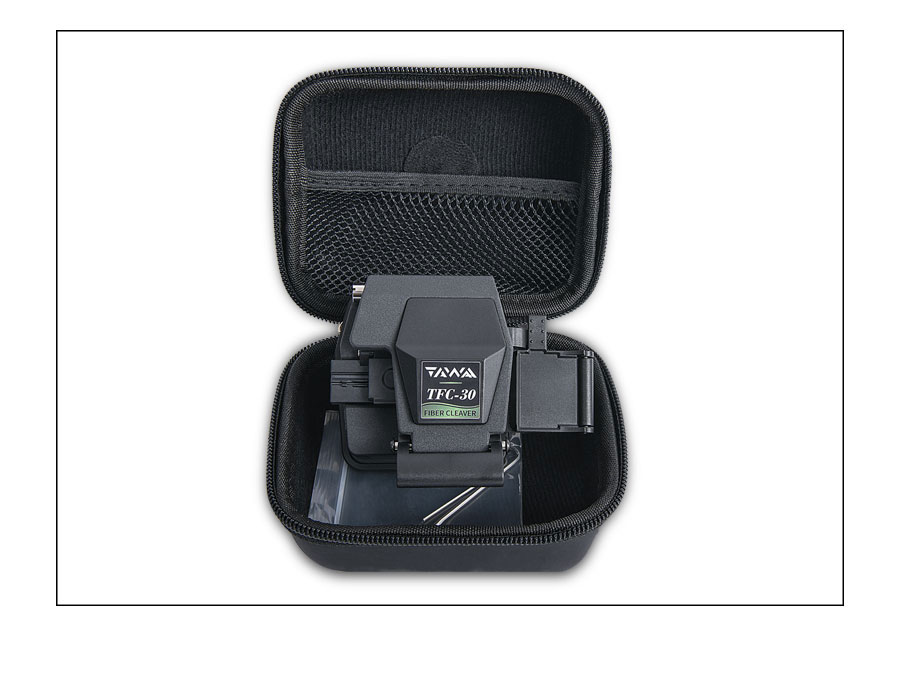

| Semi-hard Case | TFC-30-13 | 1 |
| Operation Manual | TFC-30-14 | 1 |
