TFC-22

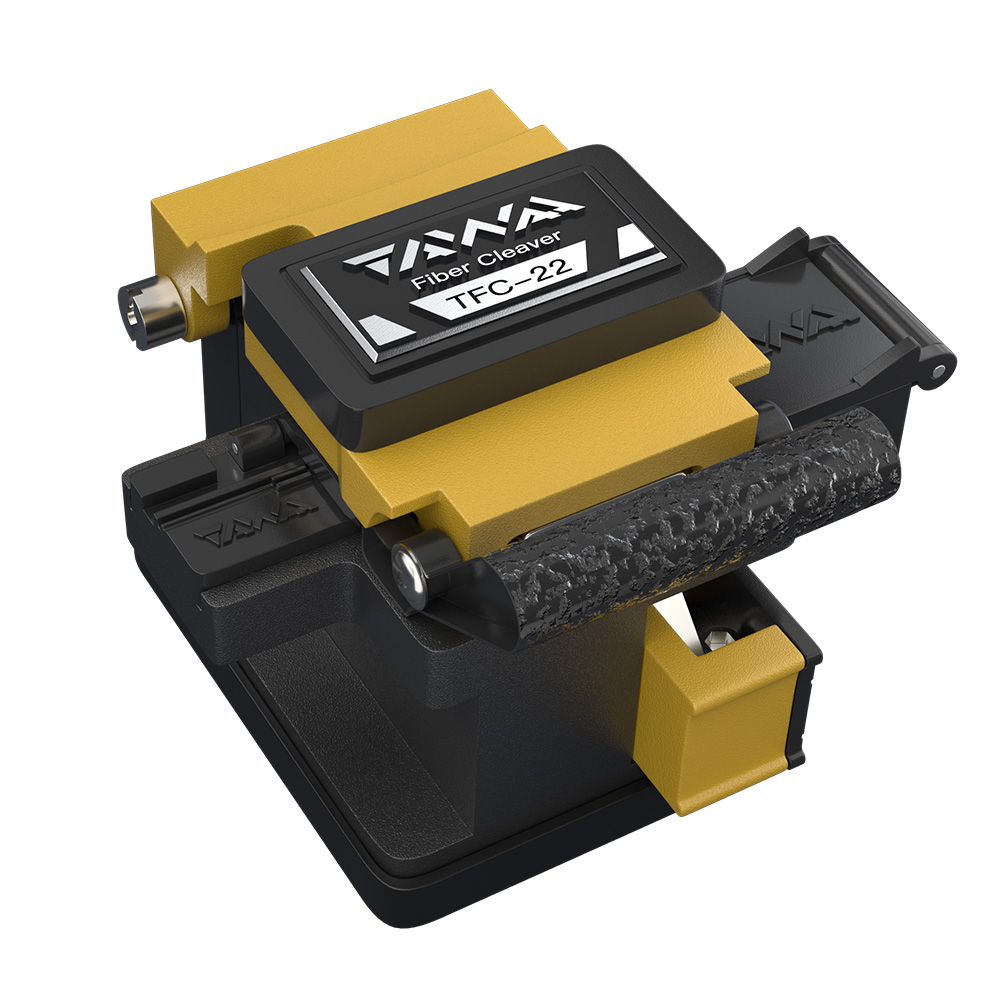

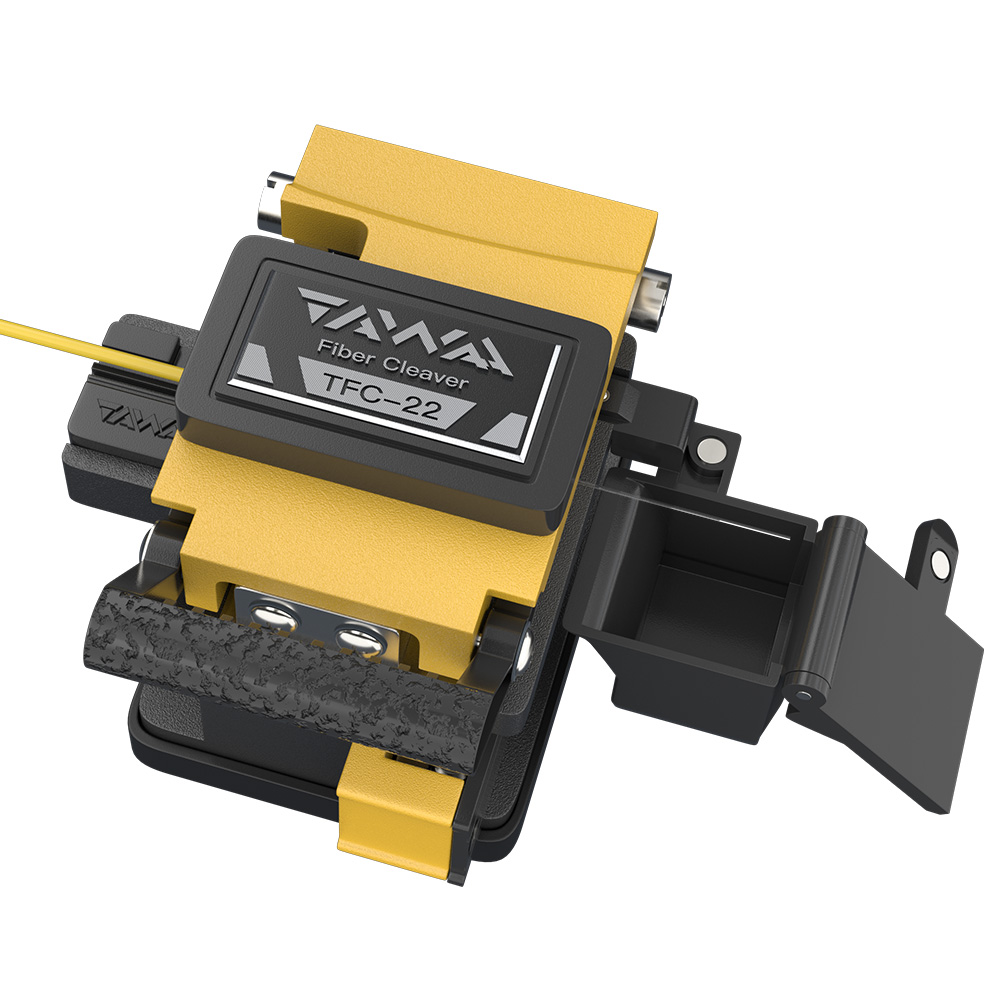

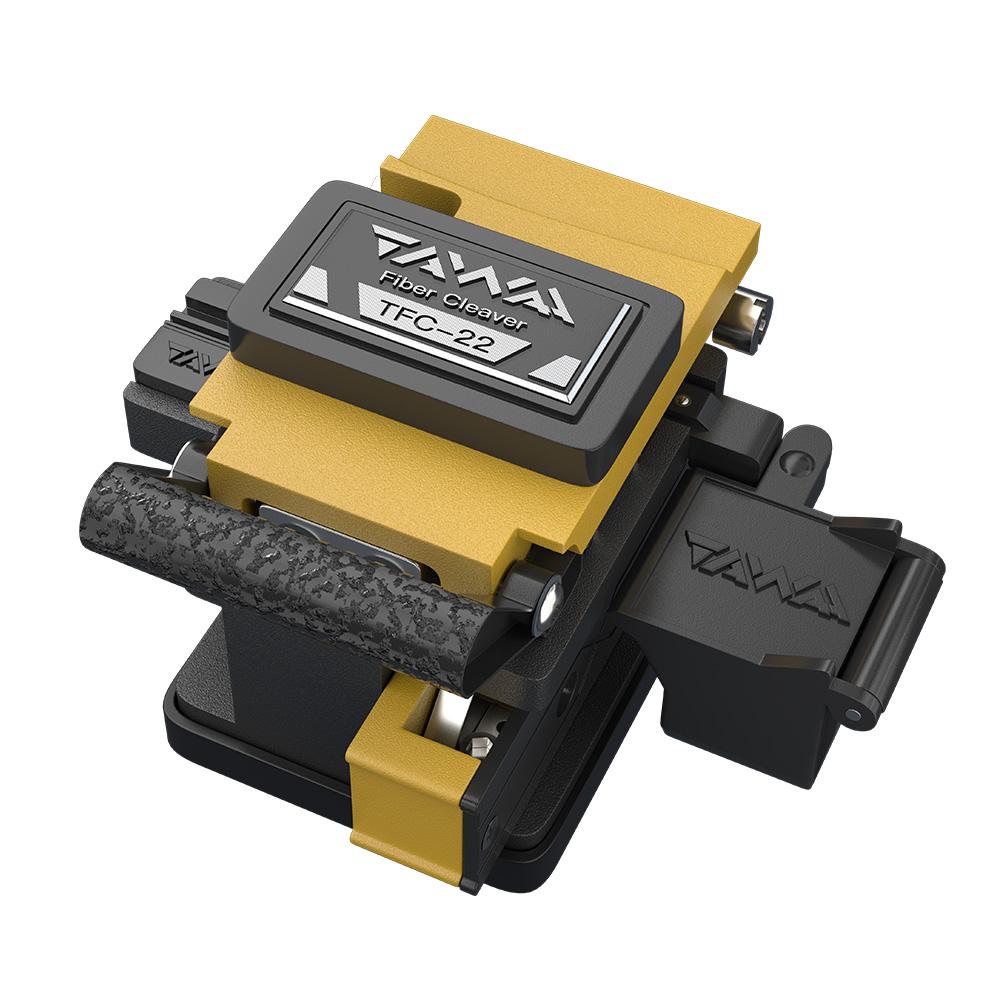

TFC-22 Optical Fiber Cleaver

Cleaved Angel <0.5 degress

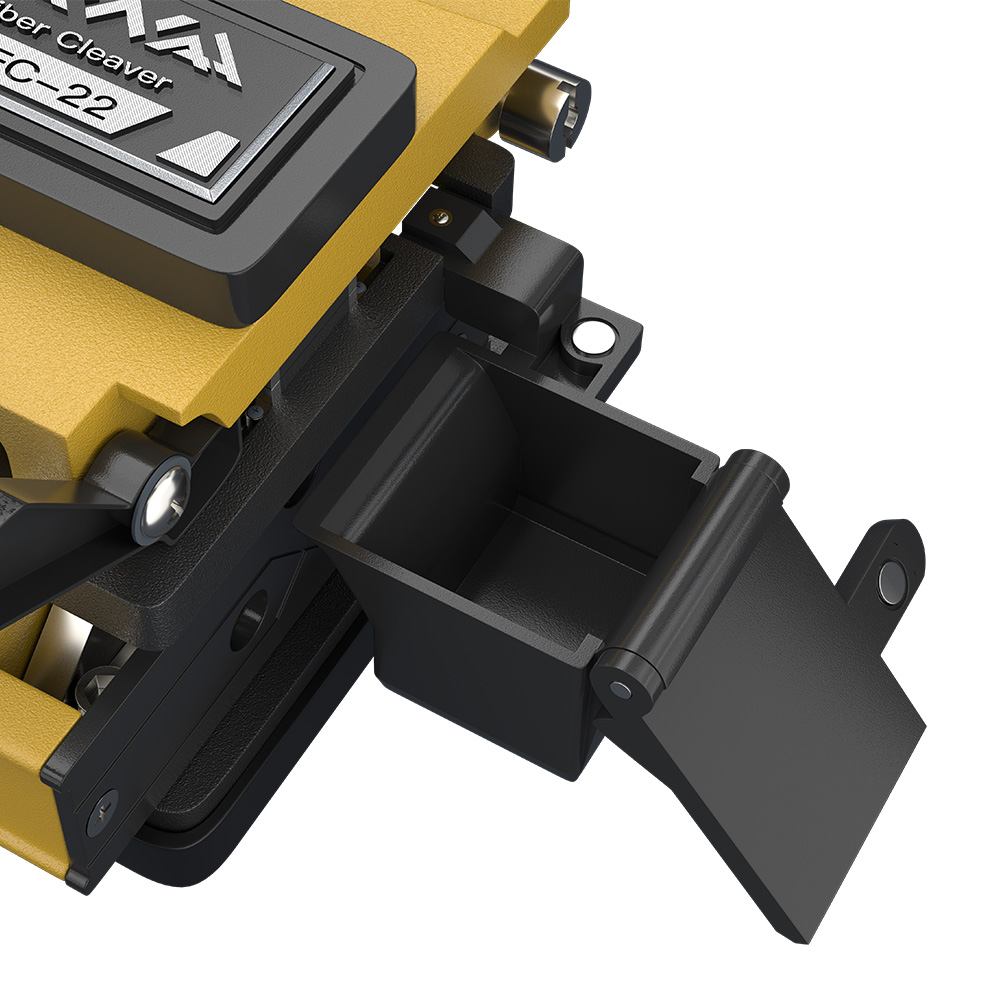

Large capacity waste fiber bin
48000 cleaves
Fall proof, dust proof and water proof
Automatic return of blade
3-in-1 holder, 0.25-3.0mm f iber
Aluminum alloy material
Replaceable blade and fixture

Video
Document
Key Features Specifications Comment

TFC-22 Optical Fiber Cleaver

  • Fiber Types : single fiber
  • Coating Diameter : 160--900μm
  • Clad Diameter : 125μm
  • Cleaved Angel : ≤0.5°
  • Cleave Length : 9-16mm(φ0.25) 10-16mm(φ0.9)
  • Blade Life ： 48000 cleaves (3000 x16 positions)
TFC-22 Optical Fiber Cleaver

Product Introduction

  • Cleaved Angel <0.5 degress
  • Large capacity waste fiber bin
  • 48000 cleaves
  • Fall proof, dust proof and water proof
  • 3-in-1 holder, 0.25-3.0mm f iber
TFC-22 Optical Fiber Cleaver

Product unctions

  • TFC-22 adopts metal body which is fall resistance, replaceable blade help to save time and more economic.
  • TFC-22 cutting fiber and collecting waster fiber simultaneously, high precision CNC, tungsten steel refined blade.
TFC-22 Optical Fiber Cleaver
  • Cleaved Angel <0.5 degress
  • Large capacity waste fiber bin
  • 48000 cleaves
  • Fall proof, dust proof and water proof
  • 3-in-1 holder, 0.25-3.0mm f iber
  • Automatic return of blade
  • Aluminum alloy material
  • Replaceable blade and fixture

Product Configuration

Item P/N Quantity
TFC-22 main body/blade TFC-22-01 1
3-IN-1 Universal Fiber Holder TFC-22-91 1
Large Capacity Fiber Waste Bin TFC-22-11 1
Hexagonal Wrench TFC-22-12 1
Semi-hard Case TFC-22-13 1
Operation Manual TFC-22-14 1


Product Parameter

Fiber Types single fiber
Coating Diameter 160--900μm
Clad Diameter 125μm
Cleaved Angel ≤0.5°
Cleave Length 9-16mm(φ0.25) 10-16mm(φ0.9)
Blade Life 48000 cleaves (3000 x16 positions)
Dimensions 62Wx64Dx74H mm
Weight 350g
